To ensure heating speed and efficiency, parameters such as the number of turns (coils), diameter, shape, and dimensions must meet impedance matching conditions and the workpiece's process requirements. Generally, the larger the diameter of the induction coil, the fewer the turns; the smaller the diameter, the more the turns.
Common types of inductors include:
- External surface heating inductors
- Internal bore heating inductors
- Flat surface heating inductors
- Universal heating inductors
- Special-shaped heating inductors
- Single-purpose heating inductors
- Composite heating inductors
- Melting furnaces, etc.
Regarding material selection, high-purity copper with low resistivity should be used, and the specifications and wall thickness must meet the requirements of the maximum operating current.
To prevent sparking between the induction coil and the workpiece, inter-turn sparking within the coil, magnetic saturation, and other issues that could damage the machine or workpiece, the following measures must be taken during manufacturing:
- Design the induction solution carefully, determine the coil shape, and calculate key parameters.
- Select appropriate thermal insulation, electrical insulation, heat preservation, and protective materials, such as high-temperature insulating sleeves, high-temperature insulation wool, quartz tubes, graphite tubes, silicone, and refractory materials.
The performance of the induction coil directly affects the equipment's effective output power, efficiency, stability, reliability, and service life. Therefore, each inductor must be rigorously designed and manufactured, and may even require experimental verification.
If you need us to manufacture a coil, please provide the following parameters:
**If you have an existing coil and need to purchase a replacement, please provide:**
1. Pictures of the existing coil, including all dimensions.
2. Ship the physical sample directly to our company.
**If a new design is required, please provide the following information (custom products, offline transactions only):**
1. Heating equipment power and frequency.
2. Workpiece drawings and heating requirements.
3. A brief description of any issues with the existing coil.

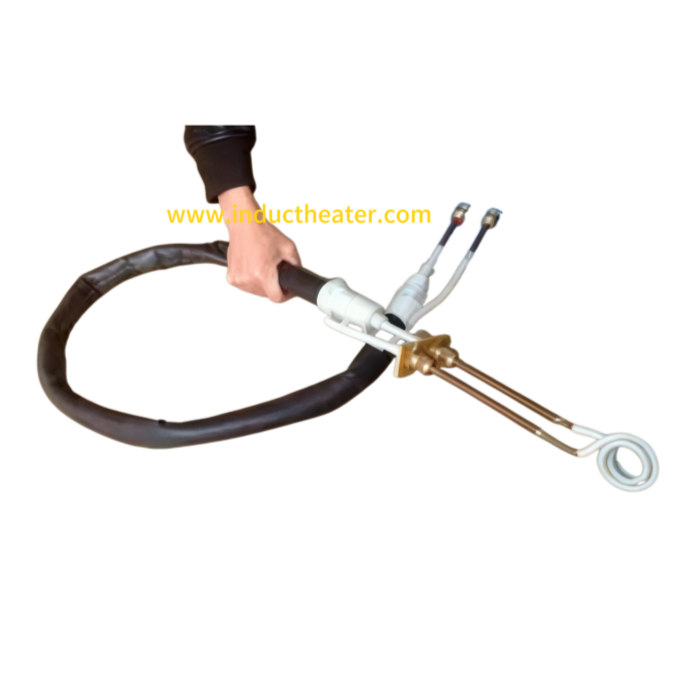

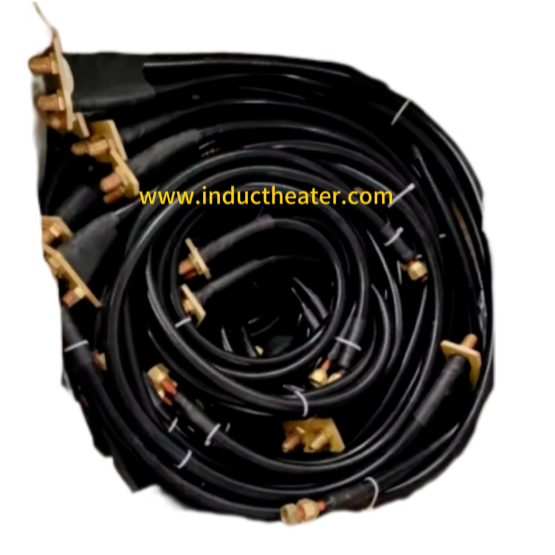

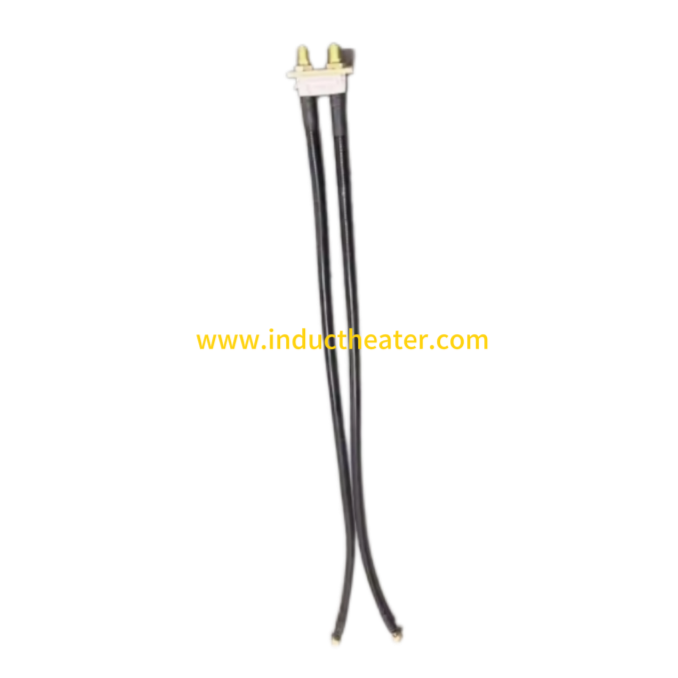

The total length of this flexible coaxial induction coil is 2 meters.
