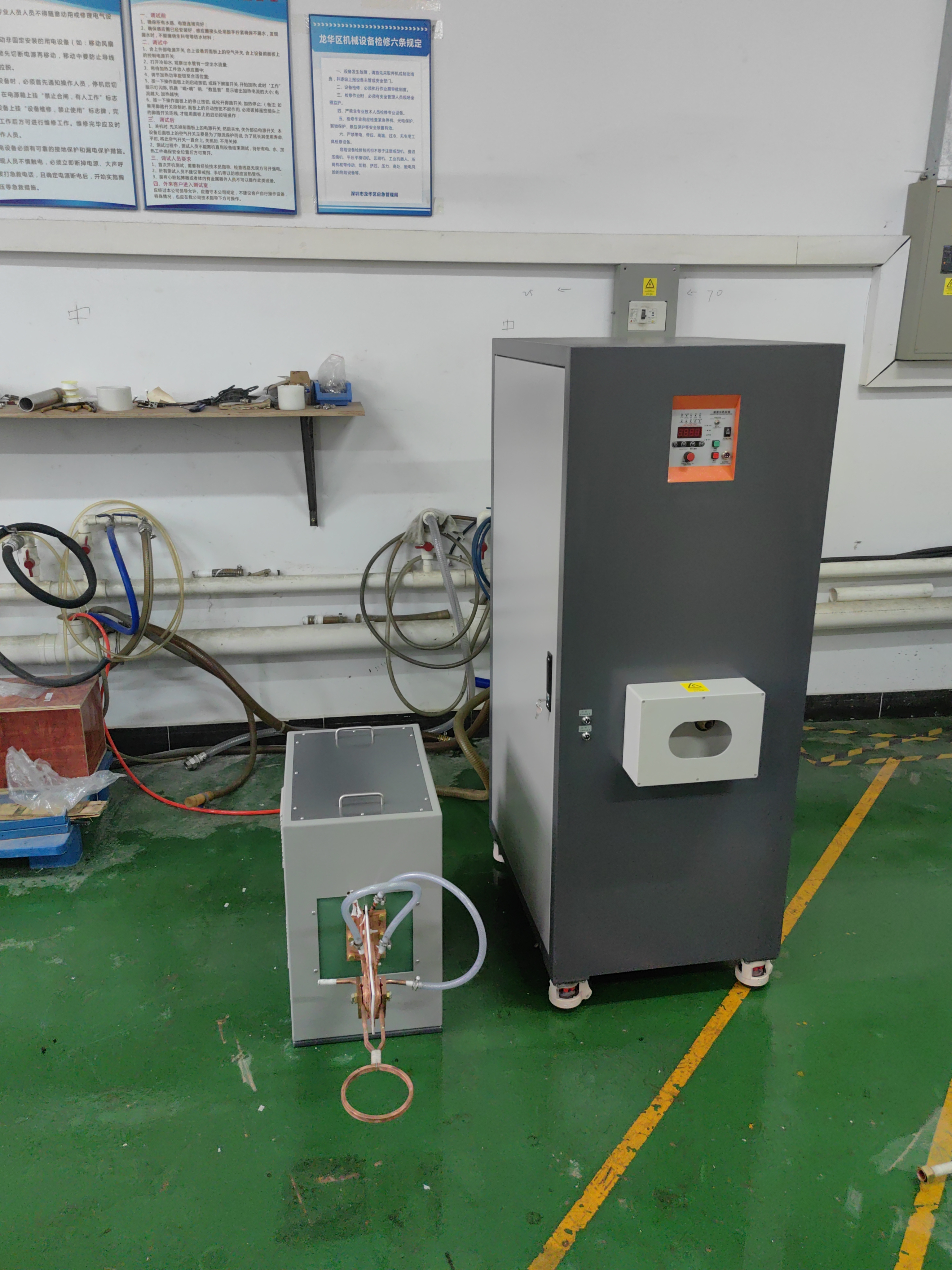

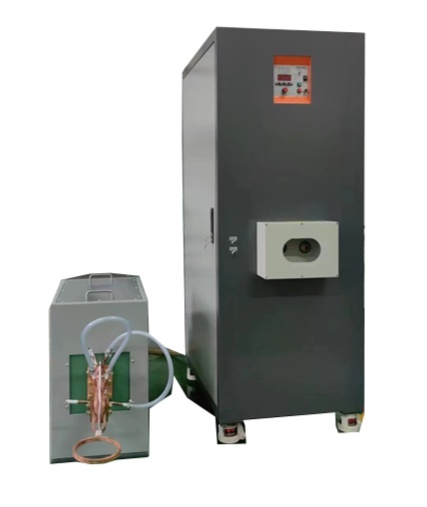

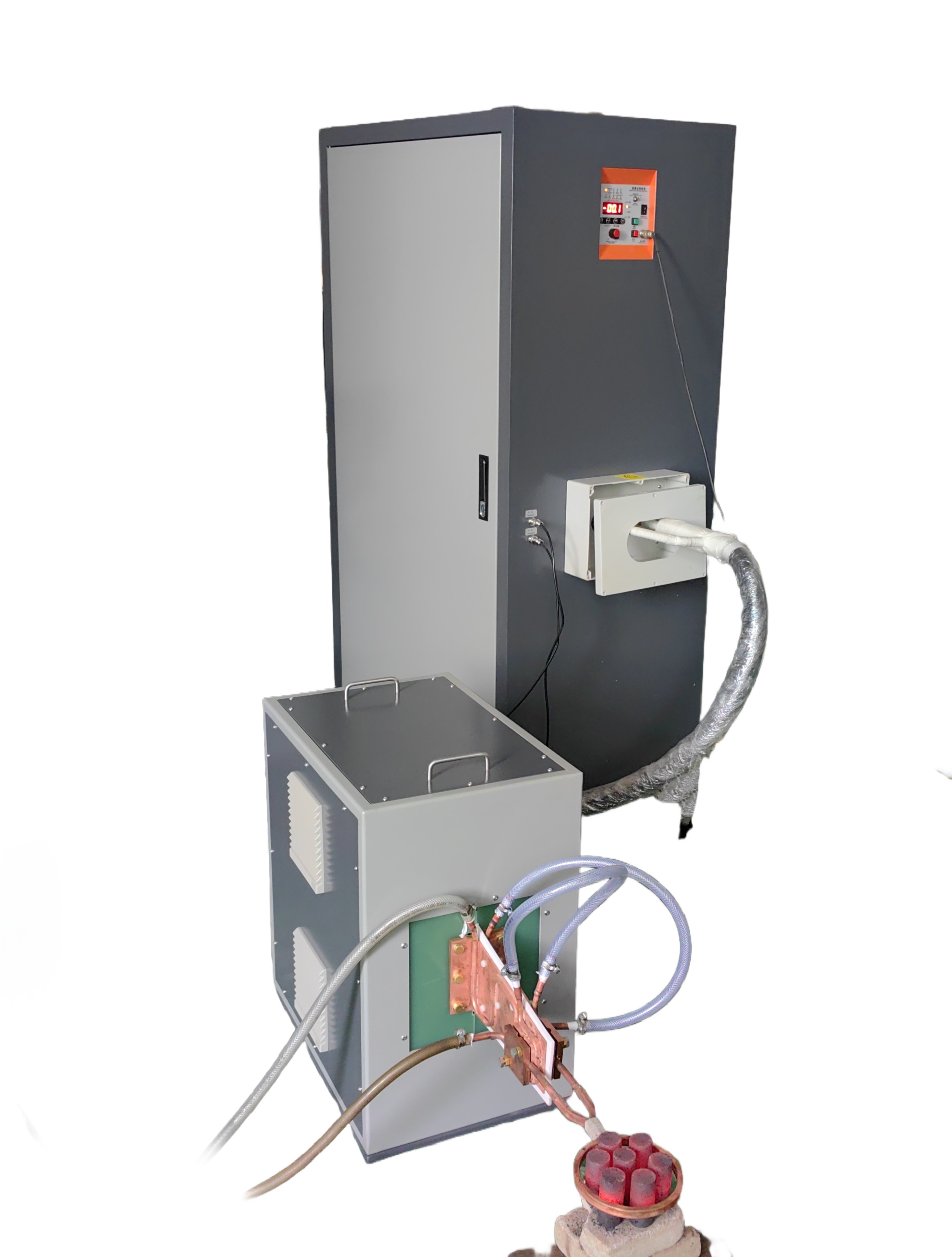

GUF80kw to 160kw ultra high induction heating machine

1. 1. Frequency can be reached 500KHZ, control the thickness of quenching 0.5- 1mm.
   2. Adopt SIC MOS power device and our company's the third generation Current-converting control technology. High reliability and low cost of Maintenance.
   3.100% duty cycle, 24 hours working ability.
   4. Constant current or power functions make machine works at high Efficiency.
   5. Display the full output power, frequency and current.
   6. Simply installation, it works with connecting water and eletricity only, no Need expert.
   7. Small and portable, save the installing space and convenient to Maintain.
   8. Auto-control can adjust the power and time during the heating and Retaining processing.
2. .Main Application:
   · Hardening for small parts
   · heating screw for dispensing machine
   · Heat treatment
   · annealing
   ·Drip melting
   · Magnetic levitation melting



Type	Max.Input Current	rated Power	Max. Frequency	Input Power	Cooling Water	Normal Size (cm)	Net Weight(kg)
GUF500K-80B	120A	80KW	400KHZ	380VAC, 480v,50 or 60Hz Three Phase	>0.2 MPa,20 L/Min, <40 ºC
GUF400K-100B	150A	100KW	400KHz	380VAC, 480v,50 or 60Hz Three Phase	>0.2 MPa, 2020L/Min, <40 ºC
GUF400K-120B	180A	120KW	400KHz	380VAC, 480v,50 or 60Hz Three Phase	>0.2 MPa, 30 L/Min, <40 ºC
GUF400K-160B	240A	160KW	400KHz	380VAC, 480v,50 or 60Hz   Three Phase	>0.2 MPa, 30L/Min, <40 ºC

​
​
