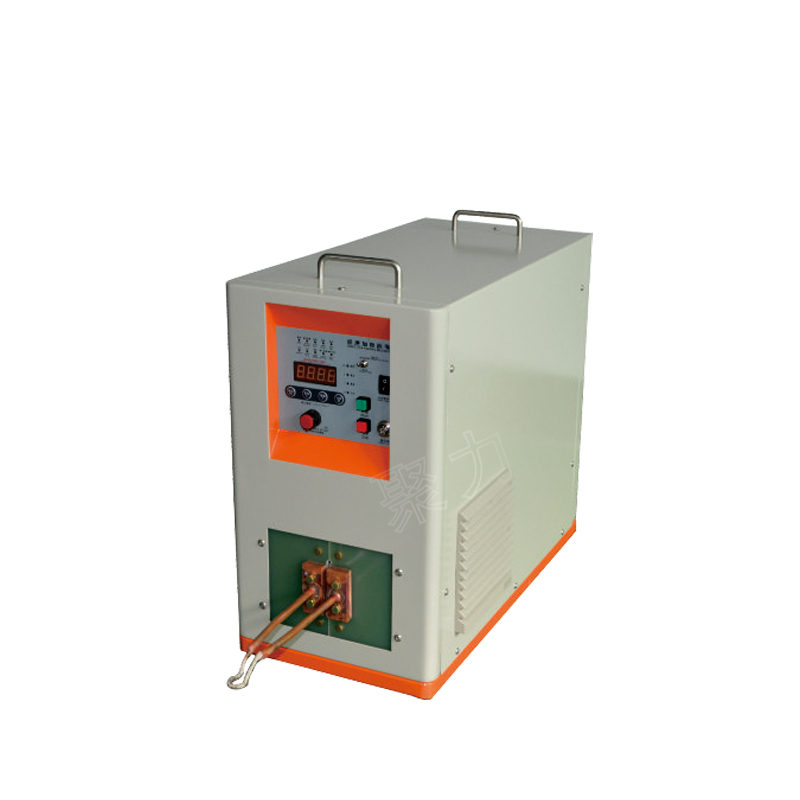

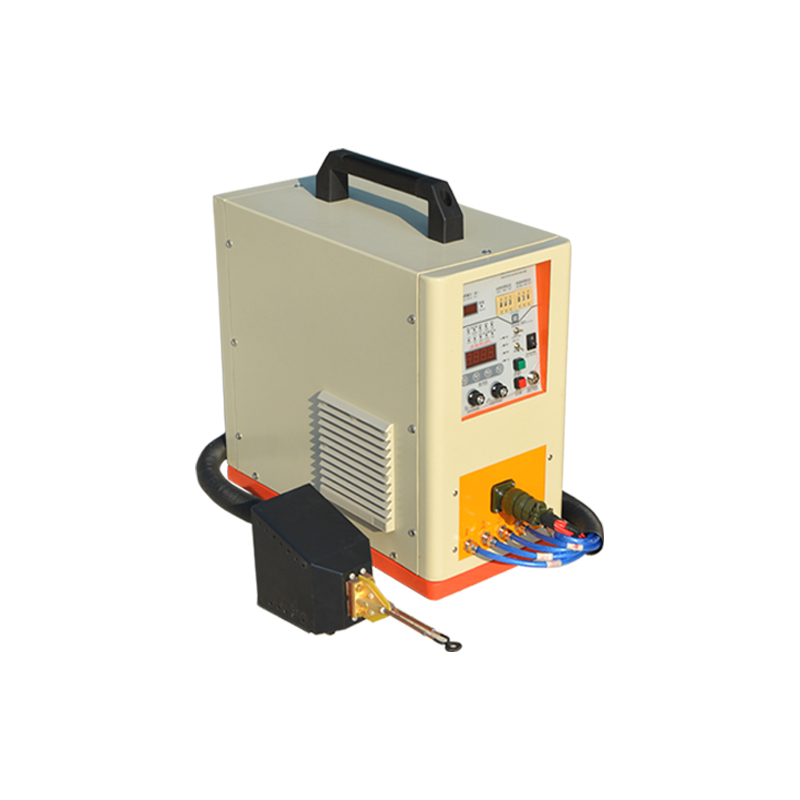

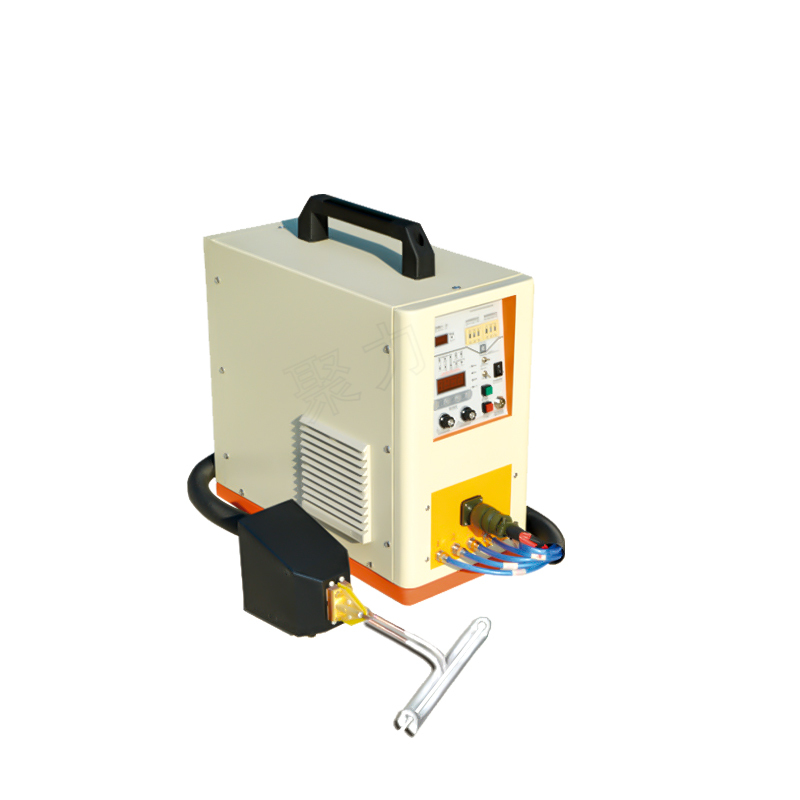

GUF6kw ultra high induction heating machine

1. 1. Frequency can be reached 1100KHZ, control the thickness of quenching 0.5- 1mm.
   2. Adopt SIC MOS power device and our company's the third generation Current-converting control technology. High reliability and low cost of Maintenance.
   3.100% duty cycle, 24 hours working ability.
   4. Constant current or power functions make machine works at high Efficiency.
   5. Display the full output power, frequency and current.
   6. Simply installation, it works with connecting water and eletricity only, no Need expert.
   7. Small and portable, save the installing space and convenient to Maintain.
   8. Auto-control can adjust the power and time during the heating and Retaining processing.

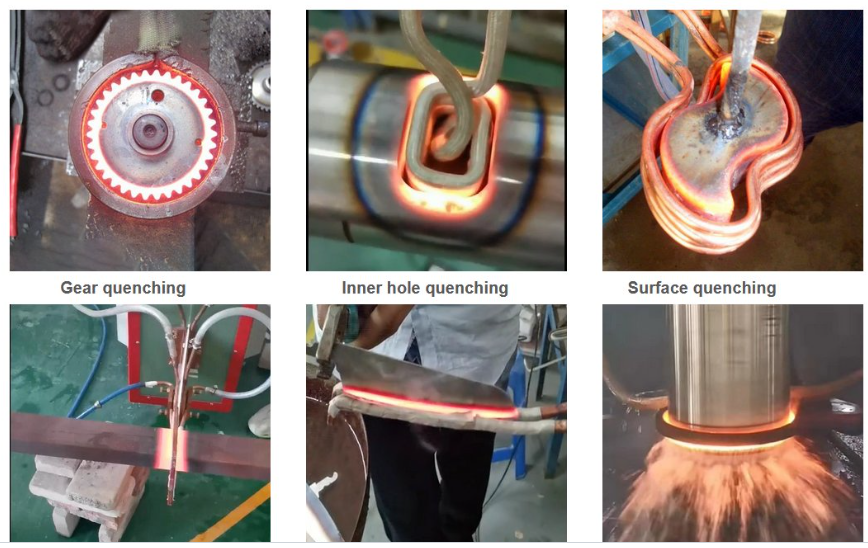

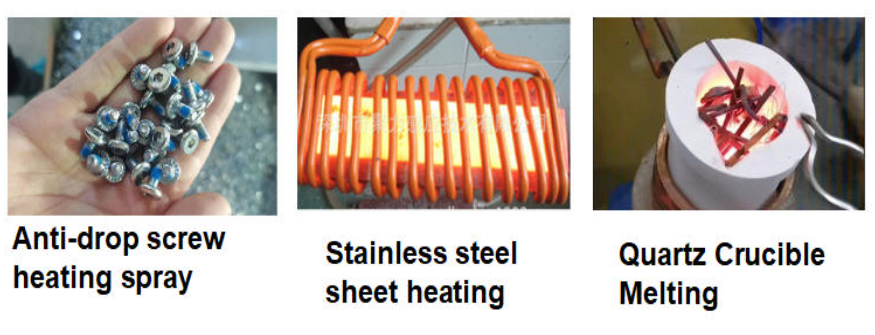

2. .Main Application:
   · Hardening for small parts
   · heating screw for dispensing machine
   · Heat treatment
   · annealing
   ·Drip melting
   · Magnetic levitation melting



Type	Max.Input Current	rated Power	Max. Frequency	Input Power	Cooling Water	Normal Size (cm)	Net Weight(kg)
GUF-06M	30A	6.6KW	600-1100KHZ	220VAC,50 or 60Hz single Phase	>0.2 MPa,6 L/Min, <40 ºC	52Lx26Vx45H	25
GUF06AM	30A	6.6KW	600-1100KHZ	220VAC,50 or 60Hz single Phase	>0.2 MPa,6 L/Min, <40 ºC	52Lx26Vx45H	25
GUF06M-B	30A	6.6KW	600-1100KHZ	220VAC,50 or 60Hz single Phase	>0.2 MPa,6 L/Min, <40 ºC	48Lx26Wx45H/14Lx10Wx13H	23/2.5
GUF06AM-B	30A	6.6KW	600-1100KHZ	220VAC,50 or 60Hz single Phase	>0.2 MPa,6 L/Min, <40 ºC	48Lx26Wx45H/14Lx10Wx13H	23/2.5

​
​
