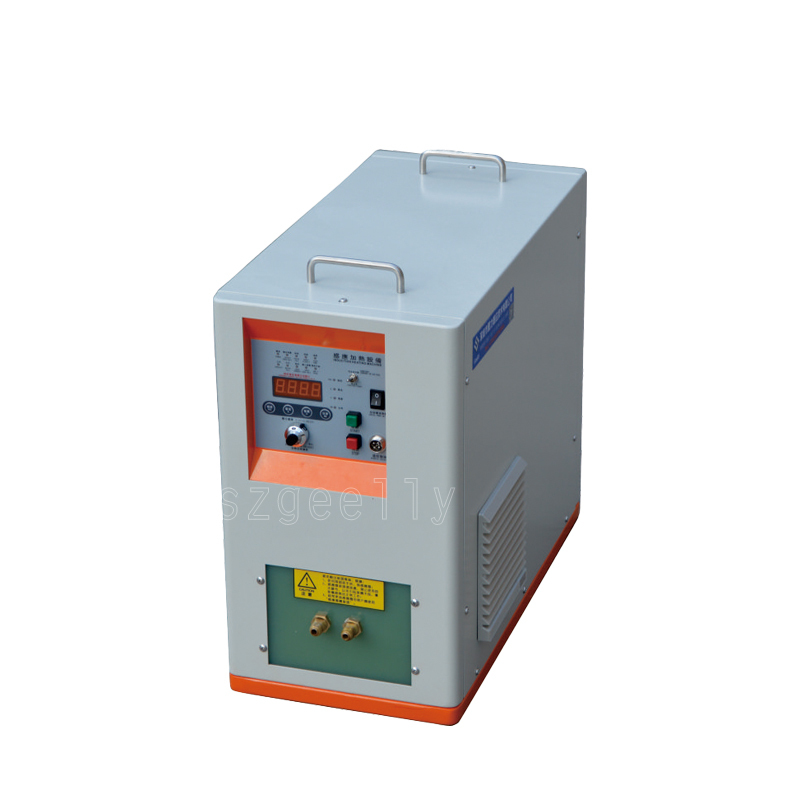

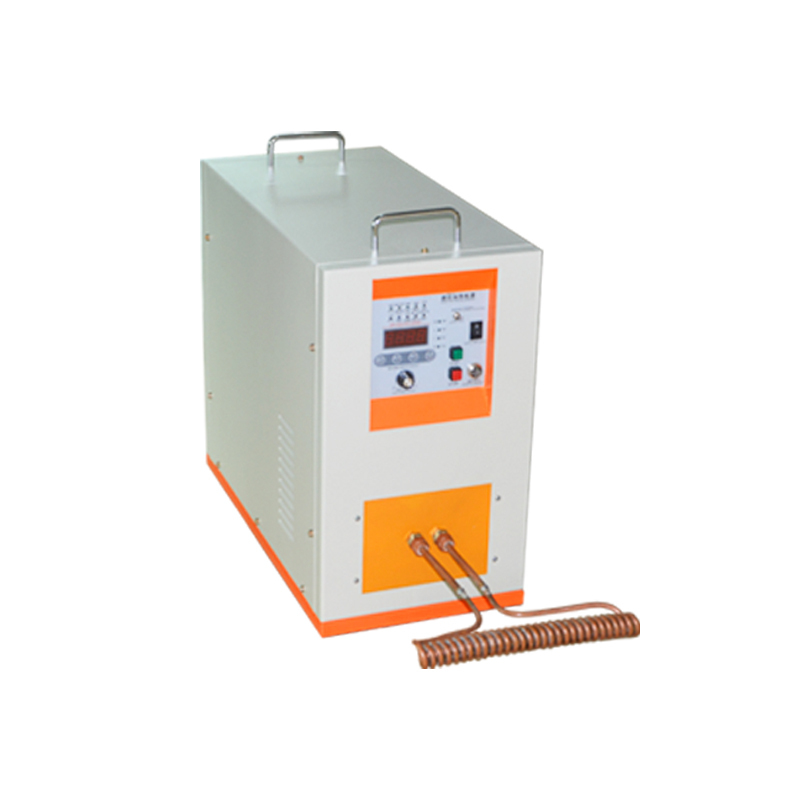

Main model: GUF-10 or GUF-10A With timer
Circuit principle:
This series of equipment adopts Infineon IGBT module power device, input voltage 380V,also415v，480v acorrding to your country desire. Series resonance and automatic frequency tracking technology, the output frequency of the equipment up to 250KHZ, suitable for a variety of applications. This series of equipment high-frequency transformer on low voltage, greatly reduce the high voltage caused by the insulation and ignition problems, thus improving the stability of the equipment, reducing transformer volume, low loss, more energy-saving.
Technical parameter：
1、Maximum input power: 10KW &12KW
2、Oscillating frequency: 100-300khz
3、Maximum input current：15-18A
4、Input voltage: three phase 380V, 415v,480v,50 or 60HZ
5、Cooling water requirement: ≥ 0.2Mpa, ≥5L/min
6、Load continuation rate: 100%
2, Main application and characteristics:
1) Gear Shaft Cutter Edge quenching
2) Heat resistant screw spray glue
3) Steel wire, stainless steel wire continuous heating
4) Smelting for powder or scrap of metal
5) Suspension smelting
6) Gold, PLatinum melting
2, Main application and characteristics:
1) Small parts heating
2) Brazing small parts
3) Silver brazing of carbide saw blade
4) Heating resistant screw (nylok)
5) Steel wire, stainless steel wire continuous heating
6) Suspension smelting
7)Gold,Platinum smelting
3, Performance advantages:
1) Original core power components and chips, soft switching circuit technology, Japanese or American potentiometer, Taiwan Button, High Quality Air Hose, etc. , to ensure the quality of equipment stability, equipment life is more than 5 years.
2) Can start and stop frequently.
3) Has multiple protection circuits such as over-current, over-voltage, under-water, over-heat, frequency discomfort, etc. .
4) With power, current, frequency display, visual,more convenient for making diffrent induction coils .
5)The whole machine runs stably, the failure rate is lower.
