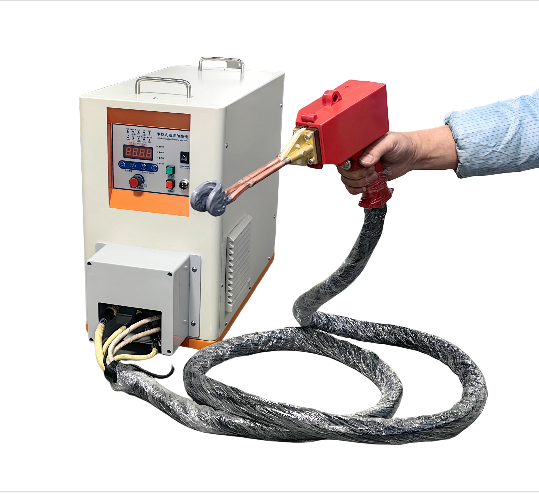

Introduction for GLY20 Series Handheld Heating Machine:
This handheld heating machine, with a frequency of 100-200KHZ, is specifically designed for U-shaped induction coil heating applications, such as brazing copper, aluminum, stainless steel, and iron pipes in air conditioners, compressors, and refrigeration equipment. It uses a new series parallel circuit and is currently the most efficient handheld welding machine for welding copper pipes. It can use U-shaped coils or circles, and the weight of the handheld gun head is only about 1KG. The cable length is lightweight, easy to move and operate, with good stability and cost-effectiveness
Parameter:
power 7 ~ 60KW ,
frequency 100-200KHZ ,
weight of head gun: 1.1kg
head gun length :3 ~ 5 meters ,

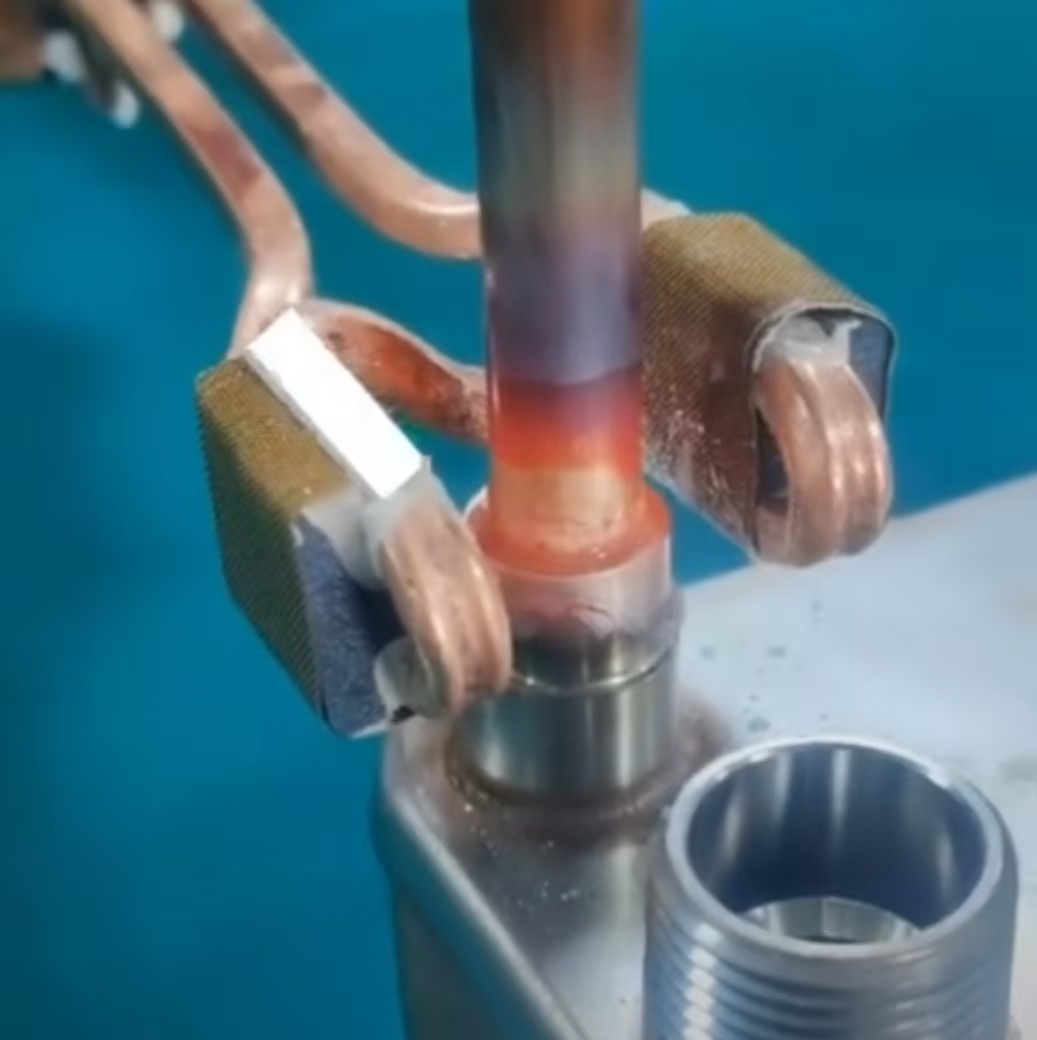

Applicaition: Widely used for brazing copper pipes, stainless steel pipes, iron pipes, aluminum pipes, transformer taps, etc. It can also be used for steel bar bending, local heat treatment, and so on
