1. Equipment technical parameters
Input voltage: three-phase 380V, 50or 60hz
Oscillating power: 50KVA
Oscillation frequency: 30-80KHZ
Cooling water requirement: 0.2MPA, 5L/min
Duty rate: 100%

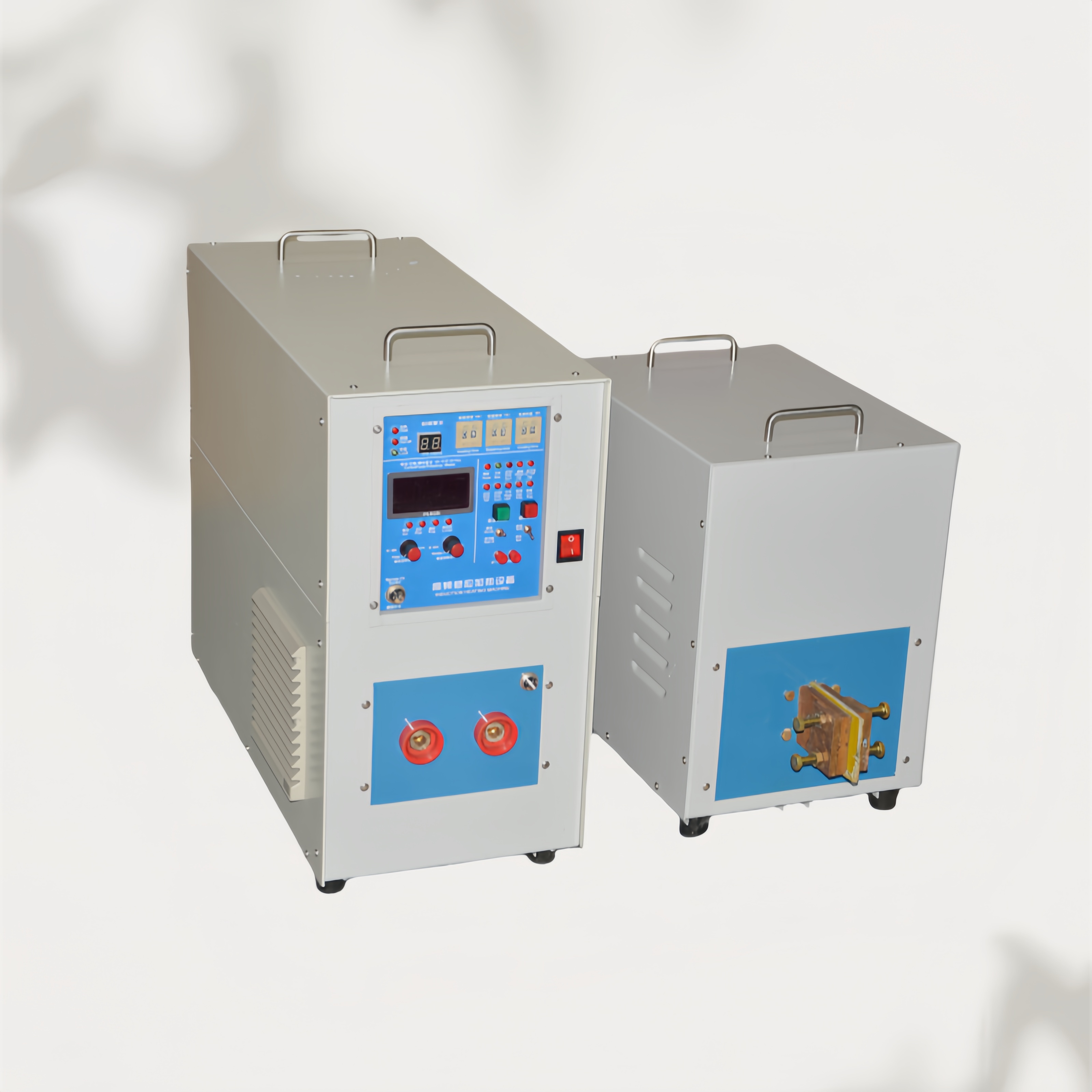

Equipment volume (CM): Main unit: 60*27*53/30KG
Extension: 46*27*40/28KG

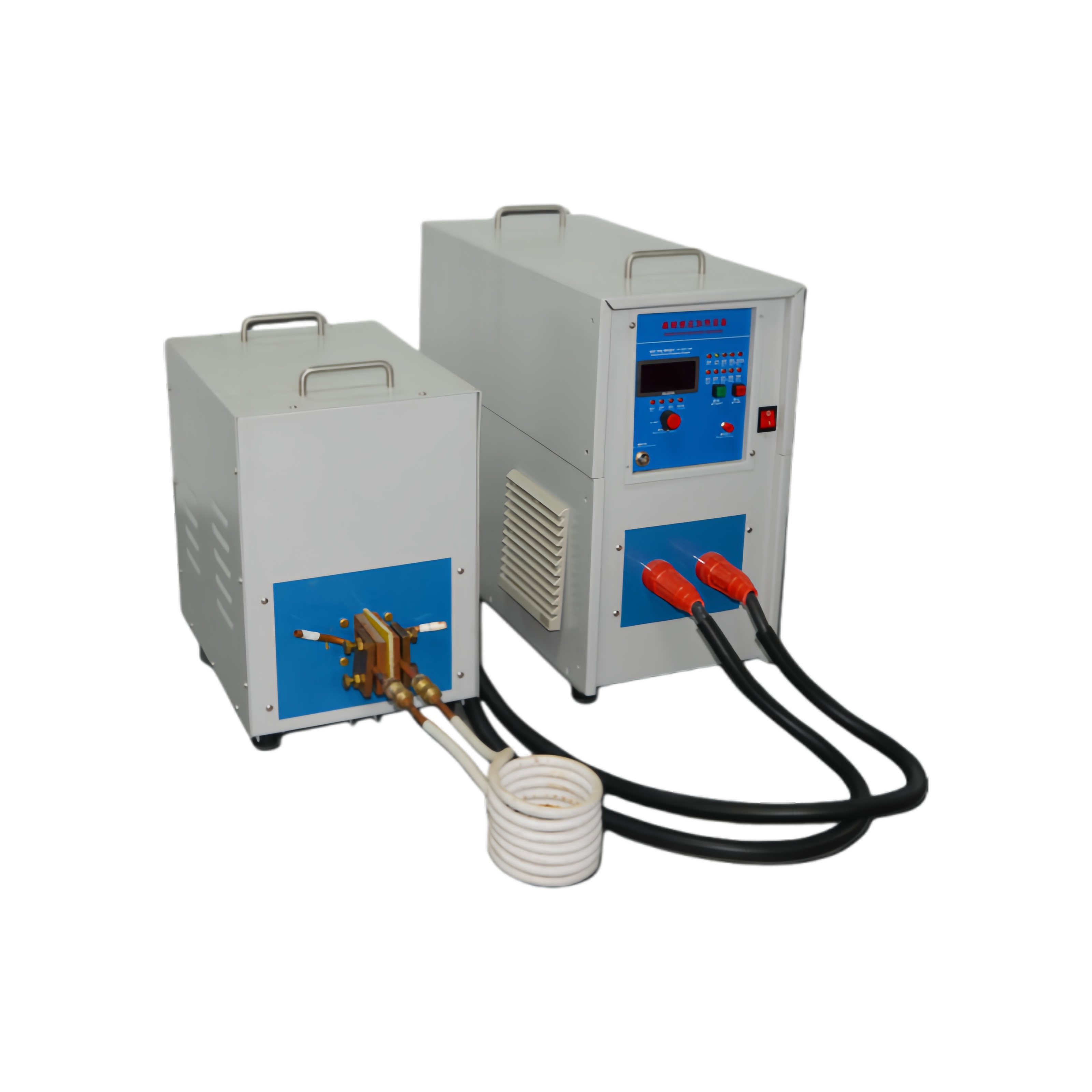

Host--Extension connection cable length: 2 meters, can be customized 6 meters
Special customization :
input voltage 3×415V, 3×480V 50 or 60HZ
with 500-1.2 m flexible cable induction ring, easy to move
The main extension soft cable can be customized up to 8 meters long
2. Main applications and features:
Features:
1) With heating current, power and frequency display
2) Input over-current, over-voltage, under-water, light load and other protection.
3) Original imported IGBT as inverter component, reliable equipment, durable
4) Main extension soft connection 2 meters, especially suitable for automatic production line or poor environment
Main application:
1) Welded road diamond blade welding, grinding disc, trimming wheel, tangential wheel, etc.
2) Quenching of gears, shafts, etc.
3) Annealing and stamping of stainless steel appliances
4) 5KG precious metals such as gold, silver, copper, etc.
5) 2KG small amount of stainless steel, Iron and other materials smelting;
6) Air conditioning copper pipe joints, valves and other brazing
3, equipment installation requirements:
1, input power line: 10mm2 soft copper wire, 6mm2 soft copper wire;
2, cooling water requirements: clean water, no impurities, not easy to lead to pipe blockage or structure, inlet water temperature 25-36 ° C ';
3, cooling water source: tap water, simple pump water tank circulating water, using our company's special chiller (see website chiller series).
