1. Equipment technical parameters
Input voltage: three-phase 380V, 415v,480v 50or 60hz
Oscillating power: 30KVA(20KW)
Oscillation frequency: 30-80KHZ
Cooling water requirement: 0.2MPA, 5L/min
Duty rate: 80%
Time control: 1-99 seconds (heating, holding, cooling)

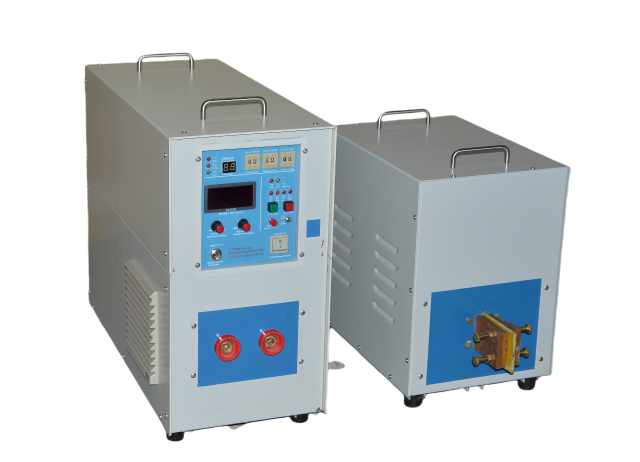

Equipment volume (CM): Host: 48*20*46 18KG
Extension: 40*200*40 22KG
Host--Extension connection cable length: 2 meters, can be customized 6 meters
2. Main applications and features:
1) Brazing of tools, turning tools, milling cutters, etc.
2) Brazing of diamond tools, diamond circular saw blades, thin-walled drill bits, etc.
3) Heat treatment of small parts: annealing, quenching, tempering, preheating, hot fitting, etc.
4) Precious metals A small amount of smelting such as gold, silver, copper, etc.
5) 1KG small amount of stainless steel material smelting;
3, equipment installation requirements:
1, input power line: 6mm2 soft copper wire, 4mm2 soft copper wire;
2, cooling water requirements: clean water, no impurities, not easy to lead to pipe blockage or structure, inlet water temperature 25-36 ° C ';
3, cooling water source: tap water, simple pump water tank circulating water, using our company's special chiller (see website chiller series).
